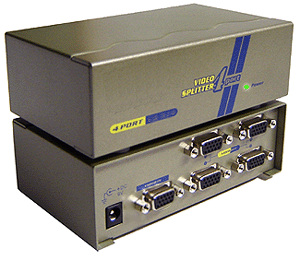

In 4 Out VGA Video Splitter VGA Distribution Amplifier
This VGA splitter is a great video
distributor to duplicate the computer video for more displays and also boost the
the video signals to longer distance without any quality loss over the long
cable run up to 210 feet without signal loss, making this VGA splitter an excellent choice for computer video
broadcast systems.
This VGA RGBHV video splitter will
work all types of VGA displays such as LCD monitors, projectors or LCD TVs for
presentation and public broadcasting. It also can be used for bench testing,
data centers or tradeshow expo. It is also recommended for use with
the graphics workstations.
Easy
Installation
This VGA splitter works on all Windows and Mac
OS platforms. All plug and play without driver installation needed.

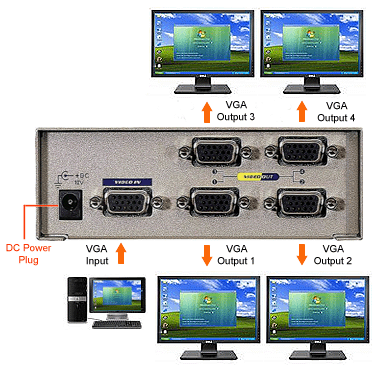

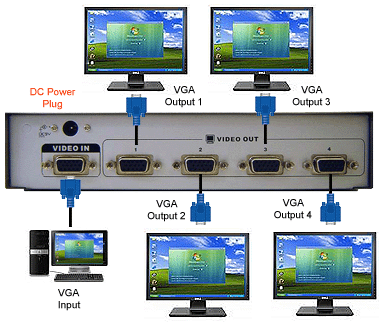

Simply plug the power supply and connect the VGA output from a computer. Then
connect the VGA outputs to the monitors or other VGA displays and the setup is
done.
Integrated Video Signal
Enhancement Technology
The input signal will be amplified and distributed via its
internal booster circuitry to ensure that both outputs are of identical quality to the
original computer input signal and also transmit the VGA signal effectively up to
180 ft away from the source location for best
performance.
The unit's ultra high 250 MHz bandwidth makes it possible to handle
VGA resolutions up to 1920x1440 pixels in 24/32-bit true color mode and maintain superior video integrity and provides
clear and sharp images.

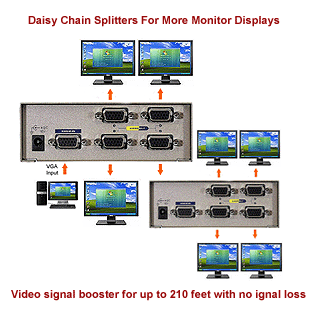

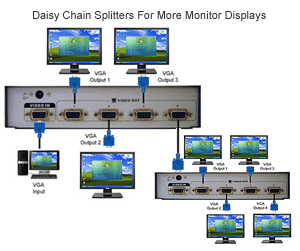

Daisy Chain Units
It is very easy to expand the number of
display monitors. Simply daisy chaining multiple video splitter units together
if the installation requires more VGA displayed to be presented.
Video signal booster for
up to 210 feet without signal loss.
Effective Video Broadcasting
Impress your audience with high-resolution
multi-screen presentations. This VGA video splitter is perfect for public video broadcasting, classrooms, tradeshows, or in-store
displays where high quality video on several monitors is needed. Flexible and cost-effective solutions
for remote monitoring at airlines, restaurants, production, control room, security
surveillance etc.
 |
|
- Premium VGA splitter solution for video
distribution to send one computer VGA signal to 4 monitors simultaneously.
- Maintain superior video
integrity and provides clear and sharp images over long range.
- Perfect VGA signal booster
amplifier for
up to
210 feet without signal loss.
- Daisy chain capability. Able to daisy-chain multiple units to generate
more outputs to expand the monitor
pools for larger display setup.
- Compatible with all SVGA
monitors, projectors and flat panel TVs with VGA inputs.
- Supports supreme high VGA
resolution up to 1920x1440 pixels at 250MHz bandwidth.
- Easy cable setup in seconds. No software
drivers needed.
- Allows companies to build highly scalable and reliable
training or conference system.
-
Works on all Windows and Mac hardware platforms.
-
All metal casing in small form factor.
| VGA Input
Connector |
D-sub HD 15-Pin Female x 1 |
| VGA Output
Connector |
D-sub HD 15-Pin Female x 4 |
| Bandwidth |
250MHz |
| Max
resolution support |
1920x1440 pixels Max |
| Power
Supply |
120V AC With 9V DC 600mA DC
Output |
| Dimension |
8"(W)x3"(D)x1.75"(H) |
- 4-Port VGA splitter
- AC/DC power adapter
- User manual
