Click to enlarge2.4G Wireless RCA Audio/Video Transmitter Kit + Remote Control Range Extender

Wireless Audio/Video Transmitter Kit With IR Remote Control Extender
Now you can enjoy the stereo audio and clear video reception anywhere in the house or office without having to run wires thru the walls or under carpets by using this wireless A/V transmitter kit.

This wireless A/V sender system provides vivid color video with stereo sound through its RF frequency broadcast instead of the traditional cable runs. Strong 2.4 GHz signal travels from location of your A/V source equipment through walls, floors, across the hallway or from the basement to the TV upstairs.

This wireless A/V transmitter also support transmitting remote control signal wirelessly to greater distance, which means that users can take the remote control to the bedroom and still be able to control cable box, satellite or DVD player downstairs.

Using this package for wireless broadcasting to make life easier and more entertaining in many ways. No extra wires to deal with and no more construction for cable installation.Application Diagram For Wireless Audio/Video Transmitter Kit With IR Remote Control Extender

Easy Setup
The setup of this kit is easy that any one can do it in minutes. After finishing the connection of power and A/V cable between the source and the receiving end, you can start watching DVD in the kitchen without moving the DVD player from the family room or listening to the favorite music played from CD player downstairs on powered speakers throughout the house wirelessly.

Superior Performance
Both sender and receiver unit have high gain antenna built in for superior wireless signal transmission and reception with crystal clear picture and sonic quality retained like wired connection.

Maximum transmission range can be up to 300 feet with clear line of sight, 50-100 feet (through walls) for audio and video signals.

Easy Expansion

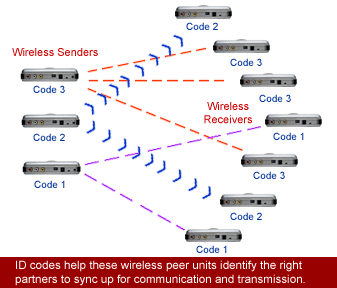

Each standard package has one transmitter paired with one receiver per set. However each wireless transmitter unit can support unlimited number of receiver units at the same time when all units are on the same frequency channel. This expansion capability is far greater than all other models supporting up to 4 or less receivers max.

User can easily expand the scale of wireless broadcasting by adding more receivers as needed to the setup. Great way to set up local area broadcasting of AV programs from single source to multiple locations within the range.

Universal Remote Control Range Extender
This wireless kit can also be used as a remote control extender by converting the IR remote control signal into RF frequency signal and able to go through barriers with greater transmission distance up to 300ft.

The remote control range extender function of this kit gives users the ability to control their A/V devices from greater distances or even from another room. It enables users to extend the range of their existing remote controller so to operate DVD player, home theater system, cable box, satellite receiver, audio video receiver, etc., virtually anywhere within their home.

The remote control extender function of this kit provides truly universal compatibility with all remote controllers because of its wide range support of IR data rate up to 60 KHz, not like other cheaper remote extenders with limited support up to 30 KHz only. This is import since some manufacturers of the STB/satellite receivers adopts the higher 38Khz to 58Khz range for the design of their remote controls. Regular remote extender models may just not work with your satellite's remote.

Wireless IR Remote Control Range Extender Kit

  • Send sharp vivid video, hi-fi stereo sound and remote control signal around the house without wired cable connection.Wireless Audio/Video Sender With IR Remote Control Extender
  • Sturdy enclosure with built-in high gain antenna for superior wireless signal transmission and reception.
  • Powerful RF transmitter built in so wireless signals can travel effectively through barriers such as walls and floors.
  • Support all analog A/V devices such as satellite receiver, TiVo, DVD player, video camera or stereo system.
  • Each transmitter unit can work with multiple receivers simultaneously.
  • Easily expand the scale of wireless broadcasting by adding more receivers to the setup.
  • 4 selectable channel frequency for wireless transmission.
  • Transmission range up to 300 feet with clear line of sight, 50-100 feet (through walls) for audio and video signals.
  • Remote control signal extension up to 100 feet max with clear line of sight.
  • Remote control extension feature allows device's IR remote work for longer range users can easily control A/V devices from another room or different floor.
  • Universal compatibility with most remote controllers with support of IR data rate up to 60 KHz, not like other cheaper remote extenders with limited support up to 30 KHz only.
  • Supports NSTC and PAL inputs/outputs.
  • Served as wireless surveillance system or nursing monitor when used with camcorder or other video surveillance cameras.

A/V Transmitting Frequency   2.4Ghz
Transmitting Power    10 dBm max
Receiver Sensitivity   -85 dBm
Frequency Stability   +/-100KHz
Video/Audio Input
  • Composite RCA x 1
  • RCA x2 for stereo audio L/R
Max A/V Transmission Range   100 meters or 300ft with clear line of sight
IR Remote Extender Frequency   433.92 Mhz/ASK modulation
IR Remote Carrier    30 to 60 Khz
IR Remote Sensitivity    -90 dBm
Antenna   Built-in F type
Operating Temperature   -10 to 60 degree C
Video System Support   NTSC / PAL
Dimension   4.7"(W) x 7.3" (D) x 1.7"(H)
Power Adapters
  • AC 110V Input
  • DC 9V, 500mA Output

  • Wireless A/V transmitter unit
  • Wireless A/V receiver unit
  • IR remote extender wire for transmitter use.
  • Power adapter x 2 (110V AC with DC 9V, 500mA)
  • Composite RCA cable set x 2
  • User manual



2.4G Wireless RCA Audio/Video Transmitter Kit + Remote Control Range Extender
W-AVS4R1$39.00
