4-Channel BNC/RCA Video To VGA
Converter
Switch
The must-have item for the best of your home
video entertainment ! This video converter allows user to
watch videos on a VGA computer monitor, projector or any other VGA display.
This video converter accepts
multiple source inputs from sources
such as CCTV surveillance cameras, DVD/VCR player, wireless
video receivers, video game consoles or computer and
outputs in clear images on any desktop
monitor, LCD TV or projector for quality visual experiences compared with
when using the conventional analog TV
set for video displays.
4-Channel BNC/Composite Video Inputs
+ 1 PC VGA Pass Through

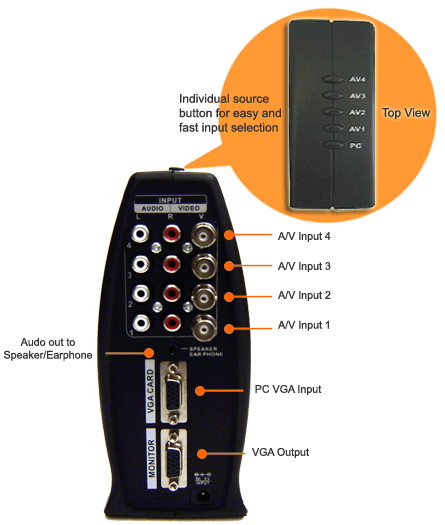

This video converter has 4 BNC/RCA
video inputs plus 1 VGA input and each video input channel has its own stereo
L/R inputs to be associated with.

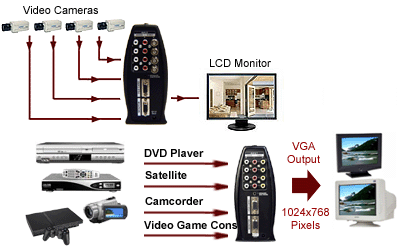

Simply
connect the A/V outputs from various sources together
through the 5 inputs of this converter and then connect its D-sub 15-pin VGA output
straight to any flat panel VGA monitor or projector. You are all set in seconds to watch high quality videos
displayed on your screen.
By just
pushing the video source selection button on this converter, users can easily select
CCTV surveillance cameras, video games, DVD movies or other video to be displayed on the monitor
instantly with
stereo sound output from
multimedia subwoofer/speaker.
Perfect Video Line
Doubler Solution
Convert virtually any standard TV video signal into a high resolution progressive
VGA signal for
improved picture performance.
1024x768 XGA Output
This video converter
supports the following selectable output resolutions:
- 640x480 pixels @60hz
- 640x480 pixels @75hz
- 800x600 pixels @60hz
- 800x600 pixels @75hz
- 1024x768 pixels @ 60hz
Automatic
Color Adjustment
The built-in video processor provides
automatic adjustments on all color elements including contrast, brightness,
color and tint ratio for the output so users do not need to fuss with manual
selection and can always expect the optimal performance.
Fast Switching Between
Multiple Video Channels
No more unplugging or
switching cables between the monitor and your video sources. With
individual source buttons on the top of this converter, it allows users to
switch effortlessly between all input channels with just
a push button away so you can have all of your video sources to share the same
monitor at the same time.
Cost
Saving With Stylish Design
Computer monitors have much higher
resolutions than the traditional analog TV sets. The viewing result is
even better with a LCD monitor and you save space too.
NTSC/PAL
Video System
This unit supports both NTSC & PAL
systems with automatic frame rate conversion for best video performance.
 |
|
|
- Stand alone BNC/composite video converter solution for all
flat panel VGA monitors and projectors.
- 100% hardware operation. Easy cable installation.
No computer is needed for the operation.
- Doubles as a 5-way video switch/selector
without the need to unplug and re-plug all the cables with 4 channels of A/V
inputs + 1 PC VGA pass through.
- Seamless switch between video
sources with
individual input buttons for easy and fast selection of video channels or
PC/VGA screen.
- Accepts
multiple source inputs from sources
such as CCTV surveillance cameras, DVD/VCR player, wireless
video receivers, video game consoles or computer and
outputs in clear images on any desktop monitor,
LCD TV or projector for
for a much brighter and sharp display.
- Support inputs from all security surveillance
cameras for live video monitoring on LCD flat panels or CRT monitors with
greater quality and less expensive than CCTV monitors.
- Maximum VGA RGBHV output up to 1024x768
pixels @ 60Hz.
- Supports both PAL/NTSC system detection.
- Stereo sound input/output:
Support 4 channel stereo L/R inputs
- Compact design suitable
for saving the space and portable use.
- Automatic PAL/NTSC detection.
- Automatic field rate conversion between 50/60
hz.
- Color transient improvement.
- Auto Luma/Chroma enhancement.
- Black level stretch.
- Selectable VGA output resolutions:
- 640x480 pixels @60/75 Hz
- 800x600 pixels @60/75 Hz
- 1024x768 pixels @ 60 hz
- Power adapter: 100-240V AC In
/ 5V DC In 1 A Out.
- Video to VGA converter
- RCA jack adapters x 4
- DC power adapter
- 6' VGA cable
- User manual
