4-Port Component Composite Video Switch + Digital S/PDIF Stereo Audio Switcher4-Port Component Composite Video Switch + Digital S/PDIF Stereo Audio Switcher
This professional audio video switcher allows users to switch between multiple HD or standard video devices with digital/stereo audio support. This HD/SD video audio routing switch supports all HD and SD resolutions from 480i up to 1080p, making it ideal for use in studios, A/V receiver, home theater system, post-production facilities, educational use, or any other setting that requires a high-quality solution.

This HD video audio routing switch can also be used as straight composite video audio switch for all SD devices of NTSC or PAL system.

Its seamless switching and distribution of all audio video signals allows you to connect more audio/video devices than regular TVs or receivers can accommodate and virtually eliminates cable hassles. No more connecting and reconnecting cables every time change sources and never run out of video/audio inputs on your HDTV/LCD TV set or projector again.

This multi-purposed video audio switcher is perfect for cable boxes, satellite receivers, DVD players, video game consoles, video cameras, home theater systems, CD players and other digital audio/video components.

High-Bandwidth Performance
This switch offers an extremely wide bandwidth capacity of 650 MHz. Moreover, video bandwidth is flat +/- 3db to beyond 650 MHz, ensuring the audio and video output from this HD/SD video audio routing switch maintain the same signal quality as the original inputs with no loss for long distance transmission.

4-Channel HD Component Video Switch
This unit provides flawless and seamless switching between up to four HDTV video inputs in component video format. This audio/video switch box supports all HD video formats at resolutions of 480i,480p,540i,540p,720p,1080i or 1080p. It is also a great way to expand your HDTV with more component video inputs.

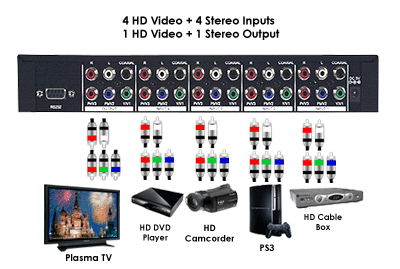

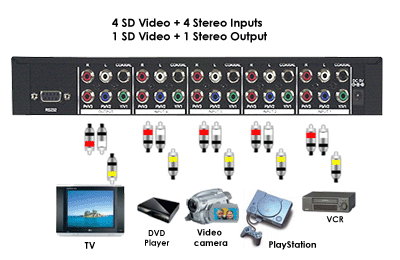

Connection Diagram For 4-Port Component Composite Video Switch + Digital S/PDIF Stereo Audio Switcher Composite Video Connection For 4-Port Component Composite Video Switch + Digital S/PDIF Stereo Audio Switcher

Multi-Channel Composite Video Switch
When used as a straight composite video switcher, each one of the green or blue or red RCA jack on the input side can be used as an individual composite video input and will be routed through the same colored RCA jack on the output end for composite video output.

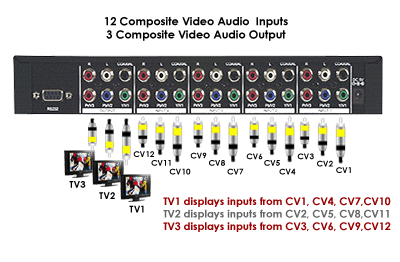

So there will be 12 composite video inputs(4 green-colored + 4 blue-colored + 4 red-colored) with 3 corresponding color-matching composite video outputs (1 green- colored + 1 blue-colored + 1 red-colored). Great way to expand your HDTV or regular SDTV with more composite video inputs. Digital Audio Connection For 4-Port Component Composite Video Switch + Digital S/PDIF Stereo Audio Switcher

[Note]: The output video type and output resolution of this switcher will be the same as the original input of component video or composite video type. This unit can not convert video format from one to another so it does not allow mix of inputs with different video types to be connected together to the same display unless the display is able to support multiple video types.

Digital S/PDIF And Stereo Audio Selector
You can easily
expand your existing audio receiver with more digital S/PDIF inputs and stereo audio inputs by adding this switch to the setup. This audio video routing switch supports both stereo L/R and digital S/PDIF audio inputs. Featured with 4 stereo L/R inputs and 4 digital coaxial S/PDIF audio. Audio input can be unbalanced or balanced stereo or digital PCM, all S/PDIF, DTS Digital Surround, and Dolby Digital 5.1 digital signals.

Multiple Operation Controls
This HD/SD video audio switcher may be controlled via the push buttons on the front panel or IR remote controller. RS-232 console port control is also a standard feature for this HD/SD audio switch to be operated from distant location or further integrated with other A/V systems.

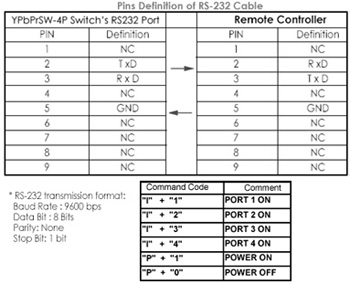

RS-232 Controls For 4-Port Component Composite Video Switch + Digital S/PDIF Stereo Audio Switcher Remote Controller for 4x1 HD/SD Video/Audio Switch

  • Professional grade high-performance HD/SD video/audio routing switcher.
  • Switching controlled via the push buttons on the front panel or the included infrared remote controller or the RS232 port.
  • Expands your TV, A/V receiver or home theater system with more video audio inputs.
  • Supreme high bandwidth 650MHz at -3dB to main the output signal integrity with no loss for long distance transmission.
  • 4 HD component/YUV inputs when used as straight component RGB video switch.
  • 12 composite video inputs when used as a straight standard video switch.
  • Supports all HD and SD resolutions from 480i to 1080p.
  • Supports both NTSC & PAL system inputs and output.
  • Supports 4 channels of digital audio inputs via coaxial connectors.
  • Supports 4 channels of stereo audio inputs via RCA L/R connectors.
  • Supports all PCM, S/PDIF, DTS Digital Surround and Dolby Digital 5.1 digital signals.
  • Supports all digital audio/video devices such as cable boxe, DVD player, satellite receiver, HD DVR, game consoles, CD players and other HD or SD audio video components.
  • Special circuitry for isolating adjacent video/audio Inputs for high quality signal transmission.
  • Support self-termination with 75 ohm load for those inputs not in use so to ensure good signal protection form outside interference.
  • Flexible switching control via push buttons on the front panel, IR remote or RS232 serial port.
  • RS-232 console port available for easy integration with other A/V equipments.
  • Universal power supply with plug adapter kit for worldwide use with support of 100V to 240V 50/60Hz.
A/V Inputs and Output For The 4-Port Component Composite Video Switch + Digital S/PDIF Stereo Audio Switcher Front And Back Of The 4-Port Component Composite Video Switch + Digital S/PDIF Stereo Audio Switcher


Video Inputs
  • 4 Component video inputs via 3 RCA connectors when used as a component HD video switcher
  • 12 Composite video inputs via RCA connectors when used as a composite video switcher
Video Outputs
  • 1 Component video output via 3 RCA connectors when used as a component HD video switcher
  • 3 Composite video outputs via RCA connectors when used as a composite video switcher
Audio Inputs
  • Digital: 4 S/PDIF inputs via coaxial RCA inputs
  • Analog: 4 Stereo L/R inputs via 2 RCA connectors
Audio Output
  • Digital: 1 S/PDIF inputs via coaxial RCA inputs
  • Analog: 1 Stereo L/R inputs via 2 RCA connectors
Video Resolution Support
  • SD: 480i,480p,576i,576p
  • HD: 720p,1080i,1080p
Audio Format Support
  • Analog type: Stereo, Mono
  • Digital type: PCM, LPCM 5.1/7.1, S/PDIF, DTS Digital Surround, Dolby Digital 5.1 digital
Bandwidth   650MHz (-3dB)
Switching Control
  • Manual push buttons on the front panel
  • IR remote controller
  • RS232 console port via serial port DB9 connection
Differential Gain & Phase   0.05% differential
Power Supply
  • 110V to 240V AC In
  • 5V DC out
Dimension   11.5"(W) x 7"(D) x 1.9"(H)













































  • 4-Port HD/SD/Audio switcher
  • Remote controller
  • Stereo audio cable set
  • Component video cable
  • Power adapter with worldwide plug kit
  • User manual






4-Port Component Composite Video Switch + Digital S/PDIF Stereo Audio Switcher
YPbPrSW-4P$98.00
