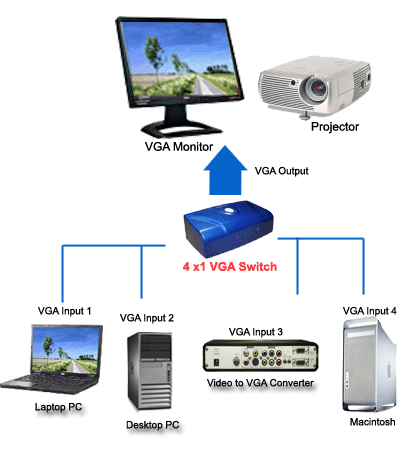

Share a VGA monitor,
projector, HDTV or any other RGB displays with four VGA sources like desktop/laptop PCs, or other systems with VGA
outputs !
This is an ultra-high resolution VGA
switcher designed for routing the selected VGA input to a data display
such as a data monitor, presentation monitor, or data projector.
Featured with 15-pin HD connectors for
inputs and output and connects directly to VGA-type video sources
and displays.
Designed
to support today's high-resolution displays and supports Windows and
Mac with analog RGB function and multi-scan display.

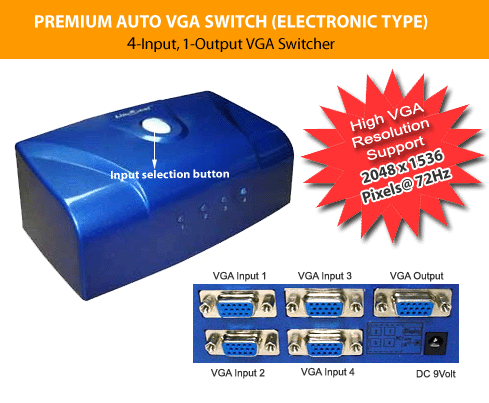

Front Panel Input Selector - Users may
select the desired input by pressing the selection button
easily. Each time the button is pressed the unit
toggles between Input 1, 2, 3 and Input 4. Front panel LED
indicators illuminate to indicate the currently selected
input. The non-selected input is terminated into 75 ohms.
Perfect video switch for events
like presentations,
classrooms, control center, remote monitoring & training
facilities.

- High resolution automatic VGA switch box with
support up to 2048 x 1536 @ 72Hz.
- Electronic video switch for use with all analog flat panel, projectors,
VGA monitors, HDTV monitor and other video display devices with VGA port.
- Superior video integrity and provides
clear & sharp images.
- Works on any hardware platform with all
operating systems including Windows & Mac OS.
- Push button switch for selecting desired VGA
input.
- 15-Pin HD Input and Output connectors.
- Compatible with all VGA, SVGA,
XGA, XGA2, UXGA signals at high refresh rate and pixel frequency.
- Supports all multi-sync monitors.
- Automatic incoming signal selection.
- Daisy-chain with a VGA multiplier/splitter to switch and
split the signal at the time.
- Hot swappable.
- Well suited for a wide range of A/V installations,
portable presentation systems and rental applications.
- Sturdy metal case enclosure.

- Save space and use
one monitor with two computers.
- Graphic designers, CAD Applications, and
hard-core gamers as well as the average user.
- Ideal for demos, multimedia presentation and
meeting room/conference rooms.
- Public broadcasting systems, merchandising and
church bible study group.
- Educational/training environment .
- Perfect mate for video games and
entertainment.

| Input
Connector |
4x
HD-15 pins VGA connectors (female) |
| Output
Connector |
1x
HD-15 pins VGA connector (female) |
| Max
VGA Resolution Support |
2048x1536
pixels @ 72 Hz |
| VGA
Input Selection |
Front
Panel Push Button |
| Power
Supply |
DC
9V Power Adaptor |
| Size |
6
inch (W) x 3 inch (D) x 2 inch (H) |
| LED
Indication |
Selected
VGA Input |
