Premium 3-Port HD Component Video Digital Optical
Audio Switcher With Remote Controller
This premium digital video audio switcher allows users to switch between multiple HD or standard video devices with
digital/stereo audio support. This HD/SD video audio routing switch supports all HD and SD resolutions from 480i up to 1080p, making it ideal for use in studios, A/V receiver, home theater system, post-production facilities, educational use, or any other setting to bring out the best results from all of your HD digital devices.
This digital video/audio switcher also provides users an easy expansion for connecting multiple digital audio
sources to sound system with limited inputs. This compact switching system helps expand your existing audio receiver or TV with more digital
audio inputs and stereo inputs. And it provides reliable and accurate digital audio signal transmission without any loss. Its fast and smooth switching between inputs allows users to connect more audio/video devices than regular TVs or receivers can
accommodate and virtually eliminates cable hassles. No more cable swapping and ever run out of video/audio inputs on your HDTV/LCD TV set or projector again.
The input channel
selection of this component A/V switch is easily done by toggling through the
push buttons on the front or the IR remote controller. Also featured with LED
indicators for the active input channel selected and power on/off status.
This HD video audio routing switch supports all
NTSC and PAL video systems. Output video standard will follow the
original video input standard. All audio and video connectors
in this switch are gold-plated to ensure maximal conductivity and minimal corrosion.

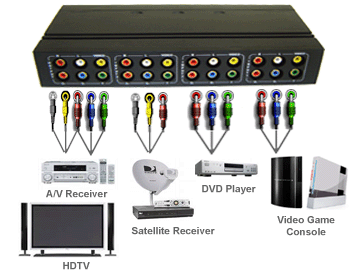

This multi-purposed video audio switcher is perfect for cable boxes, satellite
receivers, DVD players, video game consoles, video cameras, home theater systems, CD players and
other digital audio/video components.
3-Channel HD Component Video Switch
This unit provides fast and smooth switching between 3 HD video
audio source devices with single video/audio output to a HDTV,
projector or other component A/V receiving equipments. This A/V switcher supports all
component RGB video resolutions from 480i/480p, 576i/576p, 720p and up to
1080i/1080p. It is also a great way to expand your existing TV display with more
component video inputs.
Multiple Video Audio Inputs

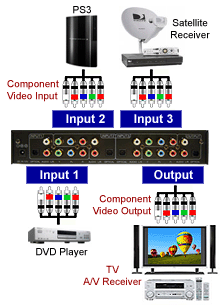

This multi-purposed video audio switcher provides multiple video audio inputs for connections with additional A/V
equipments. There are total of 3 component video inputs, 3
optical S/PDIF for digital audio inputs and 3 sets of stereo L/R inputs with
one component video output, 1 optical audio output and one set of stereo L/R
output.
3-Way Digital Optical S/PDIF Stereo Audio Switch
Users can easily expand their existing audio receivers with additional optical audio
inputs and stereo inputs with this switch added into the setup. This digital audio switcher supports 3 digital S/PDIF audio inputs and 3 stereo L/R inputs.
All digital S/PDIF audio formats are supported including compressed multi-channel Dolby 5.1, Dolby Digital, AC-3, DTS as well as
the uncompressed multi-channel PCM/LPCM type digital audio formats. Toslink digital audio provides user the cleanest possible signal, even at extreme volume levels.
This digital optical/stereo audio switch is
ideal for connection with digital/analog
audio receivers, Blu-ray player, CD/DVD players, satellite receiver, HD cable box, video game
console and computer sound cards.
This digital audio switcher supports optical sampling rate up to 192kHz at 24-bit resolution, covering most standard
digital audio equipment.
Multi-Channel
Composite Video Switch
This HD video/audio switch could also double as a standard
composite video switch. Each one of the green or blue or red RCA jacks on the
input side can be used for composite video input and will be routed through
the same colored RCA jack on the output end accordingly for composite video
output.
So there will be total of 9 composite video RCA inputs( 3 green-colored + 3 blue-colored + 3 red-colored) with 3 corresponding color-matching composite video outputs (1 green- colored + 1 blue-colored + 1
red-colored). Great way to expand your HDTV or regular TV with more
composite video inputs.
[Note]: The output video type and output resolution of this switcher will be the same as the
original input of component video or composite video type. This A/V switch can not convert video format from one to the other so it does not allow mix of inputs with different video formats to be connected together to the same display.

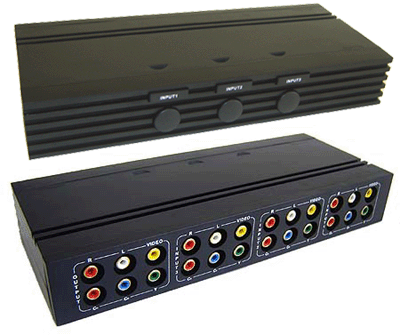

Fast Input Switching
This A/V switch provides smooth and rapid switching between various A/V input devices. Users can easily toggle through all inputs and
select the desired A/V device for output via the push buttons on the front
panel or via the included remote controller. The selected input channel
will be illuminated via the LED indicator on the front panel and all
non-selected inputs are terminated into 75 ohms.
High-Bandwidth
Performance
This switch offers
wide bandwidth capacity, ensuring that the audio and video output from this HD/SD video audio routing switch maintain the
same signal quality as the original inputs with no loss for long distance
transmission.
Easy Input Switching By IR Remote Control
Switching input is very easy. This digital audio video switcher offers two ways of operation. Users could either use the supplied IR remote controller or push button on the switcher for manual switching. No more disconnecting and reconnecting audio/video cables when you need to change input. Any 3 digital audio sources can share the same amplifier, receiver, home theater system or active speakers.
Expandable Design

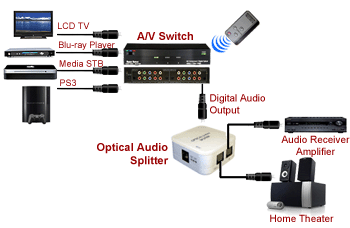

This A/V switch can be cascaded with more switches or other audio/video mixer,
splitter to act together as a single large switching system with more
inputs as needed depending on the setup. Perfect solution for permanent/mobile
presentations and great for use in presentations, trade shows, conferences,
retail, and entertainment applications.
- High performance video/audio connectivity
and device sharing solution.
- Expanding with more video/audio inputs for existing TV, A/V receiver or home theater system
with limited A/V inputs.
- 3-way HD component/YUV video switcher when used with all component RGB video devices for inputs.
- Doubles as a
9-way composite video switch when used with all standard composite video devices for inputs.
- 3-way digital optical audio switch with 3
Toslink inputs.
- 3-way analog stereo audio switch with 3 set of stereo L/R inputs.
- Special circuitry for isolating adjacent video/audio Inputs for high quality signal transmission.
- Supports all HD component video resolutions from 480i
to 1080p.
- Gold-plated audio and video connectors ensure maximal conductivity and minimal corrosion.
- LED indicators for power on/off and active
input channel.
- Supports all NTSC and PAL system inputs and output. Output video standard will follow the original video input standard.
- Accurate and fast seamless video and
audio signal routing and switching.
- Can be cascaded with other A/V mixer,
matrix and splitter to act together as a single large switching system.
- Wide video/audio bandwidth to ensure that the audio and video output from this HD/SD video audio routing switch maintain
the same signal quality as the original inputs with no loss for long distance transmission.
- Flexible switching control via push button
on front panel or IR remote controller.
- Supports all digital audio/video devices such as cable TV box, DVD player, satellite receiver, HD DVR, game consoles, CD players and other HD or SD audio video components.
- Self-termination with 75 ohm load for those inputs not in use so to ensure good signal protection form
outside interference.
- Built with sturdy metal enclosure.
- Featured with switching AC/DC power supply
with support from 110V to 240V AC inputs.

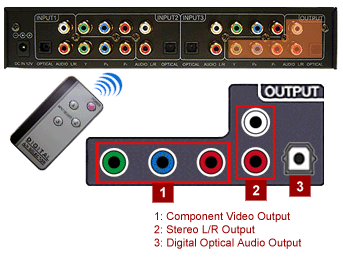

- Video Inputs: Component RGB video input x
3
- Video Output: Component RGB video output x 1
- Audio Inputs:Digital optical toslink input x 3 + analog stereo L/R input x 3
- Audio Output: Digital optical toslink output x 1 + analog stereo L/R input x 1
- Video Resolution Support:
-
SD:
480i,480p,576i,576p
-
HD: 720p,1080i,1080p
- Switching Control:
- Manual push button on the front panel
- IR remote controller
- Switching Power Supply: 110V-240V AC
In with 12V 500mA DC out
- Dimension: 9.4"(L) x
4.3"(W) x 2"(H)
- Audio/Video switch
- Remote controller
- AC/DC power adapter
