Click to enlarge2-In-1 VGA Balun CAT5 Extender + Stereo Audio Balun CAT5 Extender

2-In-1 VGA Balun CAT5 Extender + Stereo Audio Balun CAT5 Extender 2-In-1 VGA Balun CAT5 Extender + Stereo Audio Balun CAT5 Extender
Now you can easily extend a VGA signal and stereo sound to a projector or monitor at the remote location through the Ethernet Cat5/Cat6 network cable. This VGA extender kit allows long distance transmission of VGA video and audio signal over standard Cat5 / Cat5e / Cat6 UTP cable while maintaining crisp, clear resolution up to 1900x1200, eliminating the need to run bulky VGA video cable.

These modules are very ideal for digital signage applications in classroom, hospitals, airports, restaurants, hotels, conference rooms as well as in secure military and commercial setup.

Easy Installation
This VGA video and audio extender kit includes a local transmitter and a remote receiver,
allowing you to make out-of-the-way connections from a VGA video source to a remote VGA monitor with sound. The local transmitter connects to a computer source and the receiver unit placed at the remote location to be connected with the VGA monitor display.  The VGA transmitter and receiver units can then be linked using standard Cat5e or Cat6 cable to extend the VGA video and stereo audio signal from the source to the end display, providing a high quality video extension while concealing the cable for a cleaner, more professional VGA installation.

Both VGA transmitter and receiver units uses a 12V DC terminal block connector that offers a more secure installation.

Cost Efficient Cable Solution With Maximum Distance
Cat5/Cat6 cable offers a low-cost solution based on the broad availability of networking cable which is far more popular and flexible than VGA cables, not to mention the facts that Cat5/Cat6 UTP cables are much less expensive and users can easily customize the cable length needed at will.

The total distance from the PC to the furthest display can be up to 300m (950ft) maximum depending on the resolution and refresh rate of the PC's VGA graphics and the type of UTP cable used.

Stereo Audio Extension
This extender kit can be used for the extension of stereo audio for up to 300 meter away driven by using the twisted pair Ethernet cable run. Its audio out can be used for  multimedia speakers, headphones or other end receiving devices.

VGA Loop-Through For Local And Remote Display
This video extender kit consists of a local video pass-through so users can connects the computer VGA source to a local VGA display for monitoring purpose and also supplies video and audio at the same time to the flat panel display at the remote location through its paired receiver unit.

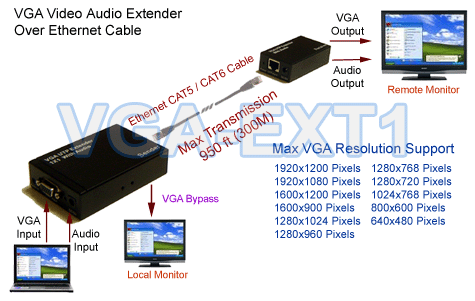

Setup Diagram For VGA Balun CAT5 Extender + Stereo Audio Balun CAT5 Extender

Adjustable Signal Gain And Equalization Control
The receiver unit of this VGA balun has knobs for adjustable gain and peak control to ensure that the full resolution of the computer video output be retained the same sharp and clear quality at the remote end display with minimum distortion and noise, full brightness and contrast just like the original VGA input.

The gain control is used for adjusting the brightness level to to adapt for the different length of UTP cable used.

The peak control is for skew adjustment. The skew level in CAT5 cables is negligible for distances less than 150 meters(450ft). However skew become significantly important when using CAT5/CAT6 cables over distance longer than 150m(450ft).

Scalable
When your business grows, the VGA extender balun grows with you for more visual displays and broadcasts. You can easily expand the display pools by adding the VGA splitter/distribution amplifier into the existing which multiplies the video signal allowing you to send the same content to multiple screens at all different location.

Transmitter Unit For 2-In-1 VGA Video Baulun Extender + Stereo Audio Balun Extender Receiver Unit For 2-In-1 VGA Balun CAT5 Extender + Stereo Audio Balun CAT5 Extender

  • Nice Balun solution for sending computer VGA signals over Ethernet cables.
  • Extends the compute VGA video signals through the low-cost CAT5/CAT6 UTP cable.
  • Extends the stereo audio signals through CAT5/CAT6 UTP cable.
  • Adjustable signal gain and equalization control to ensure that the full resolution of the computer video output be retained the same at the remote end display with minimum distortion and noise, full brightness and contrast.
  • Maximum signal transmission distance up to 300m (950ft) maximum depending on the resolution and refresh rate of the computer graphic card setting and the type of UTP cable used.
  • Supports supreme high VGA resolutions up to WUXGA 1920x1200 pixels.
  • Ideal for Pro A/V installers and integrators looking for an easy solution to extend VGA video using Cat5 cabling.
  • Fully plug and play. Easy to install and small in size.
  • Supports VGA local pass-through for displaying on local and remote VGA monitors.

Video Input Connectors
  • VGA Female, S-sub HD 15-Pin x 1
  • RJ-45 x 1 for CAT5/CAT6 Cable
Audio Input Connector
  • 3.5mm headphone stereo jack
Video Output Connector
  • VGA Female, S-sub HD 15-Pin x 2
  • RJ-45 x 1 for CAT5/CAT6 Cable
Audio Output Connector
  • 3.5mm headphone stereo jack
Vertical Frequency Range
  • 60Hz
  • 75Hz
  • 85Hz

VGA Resolution Support

  • 640X480
  • 800X600
  • 1024X768
  • 1280X720, 1280X768, 1280X960, 1280X1024
  • 1600X900, 1600X1200
  • 1920X1080, 1920X1200

Operating Humidity

  • 10% to 85 % RH (no condensation)

Storage Humidity

  • 5% to 90 % RH (no condensation)

Power Supply

  • 5V@2A, max 5W

  • VGA balun transmitter unit.
  • VGA balun receiver unit.
  • Power adapter x 2
  • User manual



2-In-1 VGA Balun CAT5 Extender + Stereo Audio Balun CAT5 Extender
VGAEXT1$88.00
