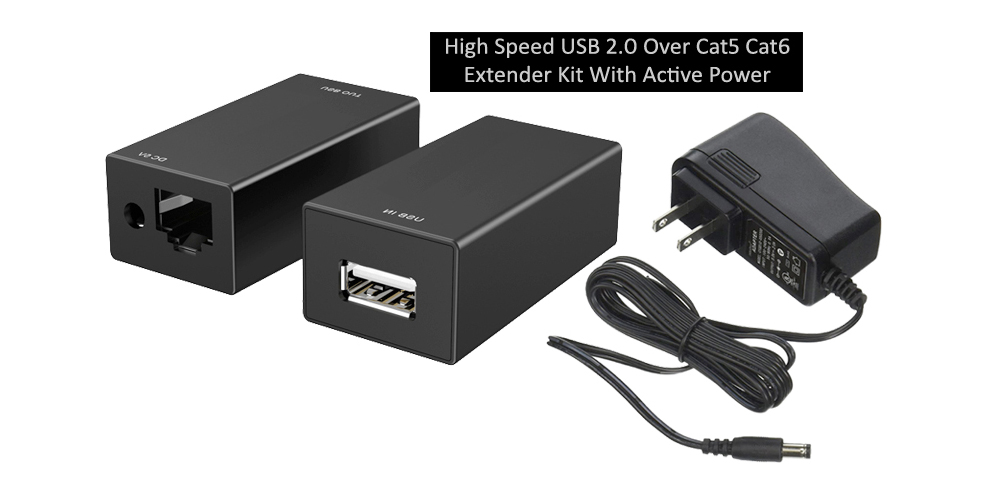

High Speed USB 2.0 Over Cat5E Cat6 Extender Kit With Active Power

High Speed USB 2.0 Over Cat5E Cat6 Extender Kit With Active Power
Item# USB-EXT25
$39.00

High Speed USB 2.0 Over Cat5 Cat6 Extender Kit With Active Power

High Speed USB 2.0 Over Cat5E Cat6 Extender Kit With Active Power
This high-performance USB 2.0 over CAT5E or CAT6 extender allows users to extend their USB connection through using low-cost ethernet cable.

Cost-effective USB extender solution for breaking the USB cable length limitation by using the standard CAT 5/CAT 5E and CAT 6 network cable as the medium for USB transmission.

It provides USB 2.0 high speed data transfer over long Ethernet cable up to 200 feet or 60 meters for hookup with USB webcam, printers, scanners, USB hard drives or flash drives, game controllers USB hub or other USB 2.0 devices without any data loss.

When connecting with USB 1.1 devices like keyboard, mouse, printer, the maximum range can be up to 320 feet or 100 meters.

More importantly this is an active USB extender with power solution so it can be used for hookup with USB hard drive or other high-powered USB devices. and allows for flexibility in equipment placement, not like those non-powered USB 1.1 extenders which can not support connection with USB hard drives, USB cameras, etc.

Convenience
Fully plug and play. No driver installation needed.

Ethernet cables are also easier and more flexible to be concealed and reaching out for much longer cable run for a cleaner, more professional setup.

High Performance Active Type USB Extender With Power
This active powered USB 2.0 extender can provide full 500mA power for charging USB device at the far end.

The included DC 5V 1A DC power supply provides sufficient DC power to operate most new USB devices such as hard drive or HD camera and allows for flexibility in equipment placement.

Those cheap USB non-powered extender models can not work with USB drive for data transmission and running at slower speed or constant disconnection with USB device.

Supports All Computer OS
This USB 2.0 extender is fully plug and play device regardless of OS type so it supports all computer operating systems including:

  • PC Windows XP, Win7/ 8 / 10 (32bit / 64bit)
  • Apple Mac OS
  • Linux running latest Ubuntu

Premium USB Data Repeater
The built-in repeaters of this USB extender provides maximum stability for connecting the computer with USB data storage over the long distance.

No data signal loss and ideal for security surveillance video, data storage, computer video/ audio streaming and other USB transmission.

Low-Cost Cable Solution Maximum Flexibility
Cat5/Cat6 twisted pair cables are widely popular and already wired in many households, corporate buildings and campus.

They are also more flexible and easier to hide away in offices, buildings and behind walls. And users can easily customize the cable length as needed .

  • Premium USB 2.0 extender over CAT5, CAT5E or CAT6 network cable with DC 5V power supply.
  • Active USB extender with power solution so it can be used for hookup with USB hard drive or other high-powered USB devices.
  • Provides full 500mA power for USB bus-powered devices.
  • Ideal for hookup with both USB 2.0 and USB 1.0/1.1 devices such as USB hard drives, USB flash drives, USB cameras, USB KVM switches, USB printers, web cams, keyboard/mouse, and any other USB devices.
  • Maximum USB 2.0 high speed data transmission distance up to 200 feet or 60 meters.
  • Maximum USB 1.1 transmission distance up to 320 feet or 100m.
  • Built-in repeaters of this USB extender provides maximum stability for connecting the computer with USB data storage or USB video camera over the long distance.
  • No data signal loss and ideal for security surveillance video, data storage, PC digital video/audio systems and other USB peripherals.
  • Fully plug and play. No driver installation needed.
  • Works with all PC, Mac and Linux OS.
  • High-speed USB 2.0 data transfer at 480Mpbs speed and backwards compatible with all USB 1.1 hookups.
  • The included DC 5V 1A DC power supply provides sufficient DC power to operate most new USB devices such as hard drive or HD camera and allows for flexibility in equipment placement.
  • Ethernet cables are easier and more flexible to be concealed and reaching out for much longer cable run for a cleaner, more professional setup.

  • Input/Output Connectors:
    • Local Transmitter Unit:
      • RJ45 port x 1 for CAT5/CAT5e/CAT6 extension cabling
      • USB Type A Male x1
    • Remote Receiver Unit:
      • RJ45 port x 1 for CAT5/CAT5e/CAT6 extension cabling
      • USB Type A Female x1
  • Maximum Distance: USB 2.0 up to 60 meters/198 feet or USB 1.1 up to 100 meters/328 feet
  • Transfer Speed: USB 2.0 at 480Mbps
  • External Power Supply: AC power input 110-240V With DC 5V 1A Output

  • USB 2.0 extender kit
  • DC 5V power adapter x 1
  • User manual
